2D Barcode Scan Engine Payment Barcode Scan Continuous, Auto-Induction

$29.95$76.40 (-61%)

2D Barcode Scan Engine Payment Barcode Scan Continuous, Auto-InductionType: Barcode Scanner
Scan Element Type: CMOS
Colour Depth: 32 Bit
Interface Type: USB, COM, TTL, RS232

Compare
SKU: 7249216635061 Categories: , Tags: , , , , , ,

$29.95$76.40 (-61%)

  • YHD-M800D USB$15.99-+28450-CN_LOCAL_01
  • YHD-M800D TTL$15.99-+24125-CN_LOCAL_01
  • YHD-M800D RS232$15.99-+26650-CN_LOCAL_01
  • YHD-M800D MICRO USB$15.99-+29132-CN_LOCAL_01
Clear

Description

2D Barcode Scan Engine Payment Barcode Scan Continuous, Auto-Induction

Product Description
Type: Barcode Scanner
Scan Element Type: CMOS
Colour Depth: 32 Bit
Interface Type: USB, COM, TTL, RS232
Max Paper Size: A4 Size
Optical Resolution: 4mil
Scan Speed: 500scan/sec, 500Scan/sec
Brand Name: YHDAA
Warranty(Year): 2-Year
After-sales Service: Return and Replacement, Others, Repair, Free spare parts, Onsite
Training and Inspection, Call Center, and Online Technical Support
Product name: 2D barcode scan engine
Trigger Mode: Continuous, Auto-Induction
Imaging Sensor: CMOS
Indication: Buzzer & LED
Resolution Ratio: 300 000 pixels
Interface: RS232,USB,TTL,Micro USB
Resolution: 4mil
Decoding Capability: 1D QR 2D
Warranty: 2 years
Selling Units: Single item
Single package size: 12X6X12 cm
Single gross weight: 0.300 kg
Package-Type: * Standard list: Scanner*1, Cable *1, Manual *1, Box *1. * Single package
size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232) * Single gross
weight: 0.1kg(USB/TTL/Micro USB) ; 0.2kg(RS232) * 120pcs/CTN( USB/TTL/Micro
USB); 63pcs/CTN((RS232) * Carton: 120pcs/13KG( USB/TTL/Micro USB) ; 63pcs/14KG((RS232)
package-img

AIDC 2D Barcode Scan Engine Kiosk Payment

Vending Machine Barcode Scan Module

1. Small in size, easily embedded and fixed.

2. Supports manual/ auto-sensing scanning, 2 modes for option.

3. Supporting the RS232,USB,TTL,Micro USB interface.

4. Plug and play, driver-free, convenient for usage.

5. Super scanning and decoding ability, can read incomplete and fuzzy codes.

6. Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.

7. Mini size and lightweight easy to be integrated into various solutions such as kiosks,

flow line,medical equipment, parcel locker, supermarket locker, ticket machine, logistics, hospital,vending machines, etc.

8. Can be customized according to customer demand.

AIDC 2D Barcode Scan Engine Kiosk Payment Vending Machine Barcode Scan ModuleAIDC 2D Barcode Scan Engine Kiosk Payment Vending Machine Barcode Scan ModuleAIDC 2D Barcode Scan Engine Kiosk Payment Vending Machine Barcode Scan ModuleAIDC 2D Barcode Scan Engine Kiosk Payment Vending Machine Barcode Scan ModuleAIDC 2D Barcode Scan Engine Kiosk Payment Vending Machine Barcode Scan ModuleAIDC 2D Barcode Scan Engine Kiosk Payment Vending Machine Barcode Scan ModuleAIDC 2D Barcode Scan Engine Kiosk Payment Vending Machine Barcode Scan ModuleAIDC 2D Barcode Scan Engine Kiosk Payment Vending Machine Barcode Scan ModuleAIDC 2D Barcode Scan Engine Kiosk Payment Vending Machine Barcode Scan ModuleAIDC 2D Barcode Scan Engine Kiosk Payment Vending Machine Barcode Scan ModuleAIDC 2D Barcode Scan Engine Kiosk Payment Vending Machine Barcode Scan Module

Product Specification

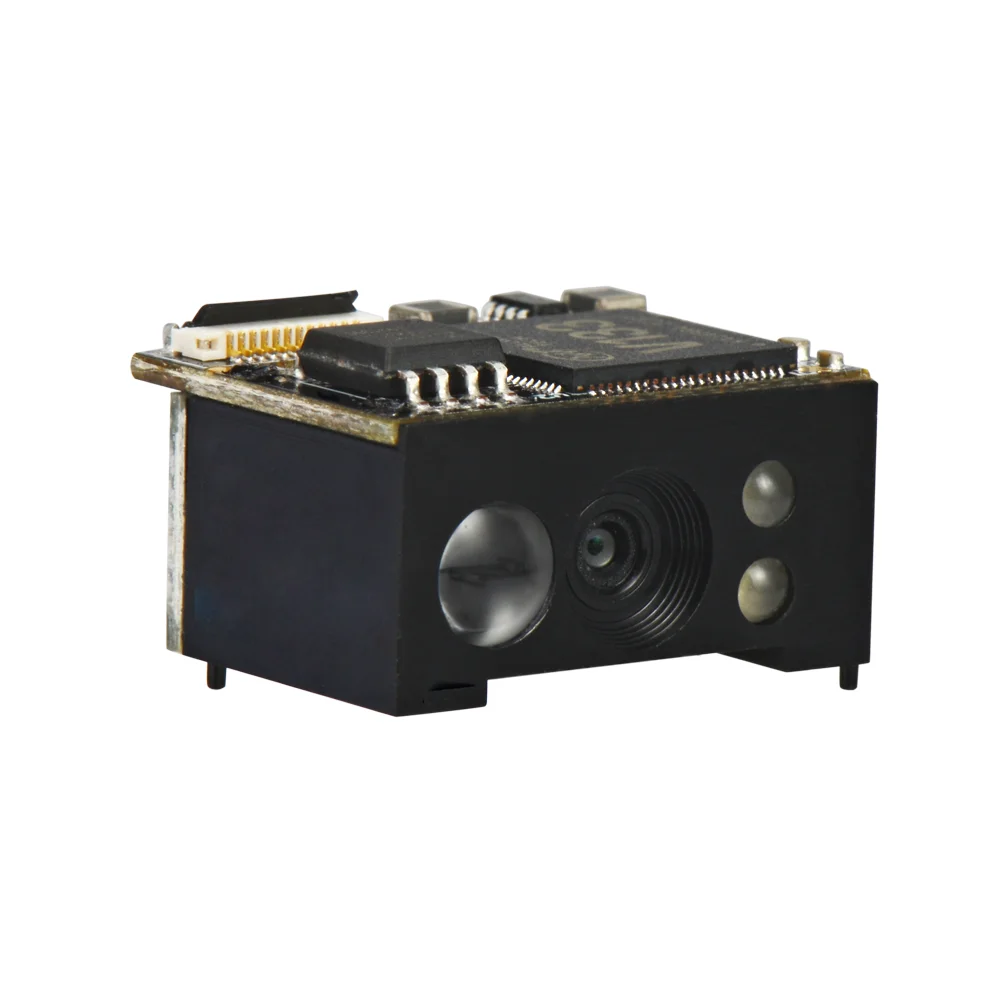

YHD-M800D Mini CMOS Barcode Scanner Module

Imaging Sensor

CMOS

Optical Source

620nm Visible red light diode

Trigger Mode

Continuous,Auto-Induction

Indication

Buzzer & LED

Resolution Ratio

300 000 pixels

Interface

RS232,USB,TTL,Micro USB

Resolution

4mil

Scan Speed

500Scan/sec

Minimum Contrast

≥ 30%

Decoding Capability

1D: CODE128 EAN-8 EAN-13 UPC-E UPC-A Interleaved 2 of 5

ITF14 MATRIX 25 Code39 Codabar Code93 UCC/EAN-128

Code11 ISBN INDUSTRIAL25 STANDARD25 Plessey etc

2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417,etc

Max.Power

1060mw

Working Voltage

5V

Current

Max. : 212mA Working : 156mA~212mA Stand-by : 156mA

Temperature

Storage: -40°C ~ 60°C Working: -20°C ~ 50°C

Relative Humidity

5 ~ 95%

Weight

3g (scanner without cable and development board)

11g(scanner with cable and development board)

Dimensions

21*15*10 mm (scanner without cable and development board)

44*33*11 mm (scanner with cable and development board)

Drop test

1.5m fall to concrete

Certificate

CE,FCC,RoHS,IP54
